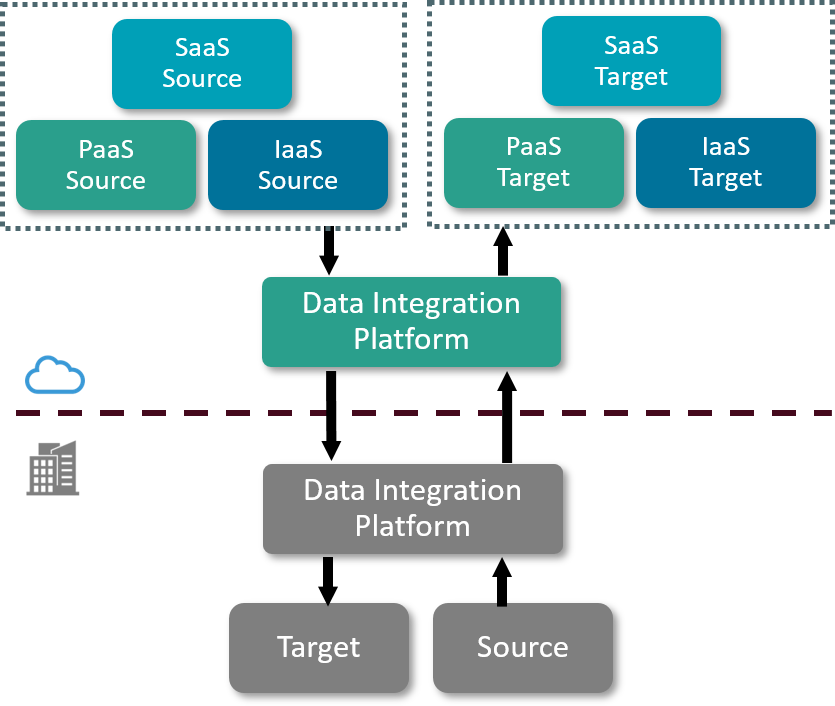

Hybrid File Transfer

Copy a file from a source to a target (where both the source and target can be Cloud-based or on-premises) using both a Cloud-based and on-premises Data Integration Platform.

Pattern Definition

Upload On Premises to Cloud

Transfer data (via file) from SaaS or Cloud-based application to an on-premises application.

Interactions

  1. The on-premises Data Integration Platform notifies the on-premises application to export a file. This notification could be time based or business event driven. The notification could also be replaced by a timed export from the on-premises application.
  2. The on-premises application exports data to a file.
  3. The on-premises Data Integration Platform retrieves the file.
  4. The on-premises Data Integration Platform processes the file and sends the file to the cloud based Data Integration Platform.
  5. The cloud based Data Integration Platform processes the file and writes a file to a Cloud-based storage.
  6. The Data Integration Platform notifies the Cloud-based application that the file is ready for processing. The Cloud-based application could be SaaS, or an application running on PaaS or IaaS. The notification could also be replaced by a timed import or polling from the Cloud-based application.
  7. The Cloud-based application reads the file and processes the contents.

Notes

  1. The notifications to the applications are shown as a single call, but there could be multiple API calls to export or import the files.
  2. The on-premises Data Integration Platform tend to support:
    • REST with HTTP Basic or OAuth security, or
    • SOAP with WS Security using username and timestamp.

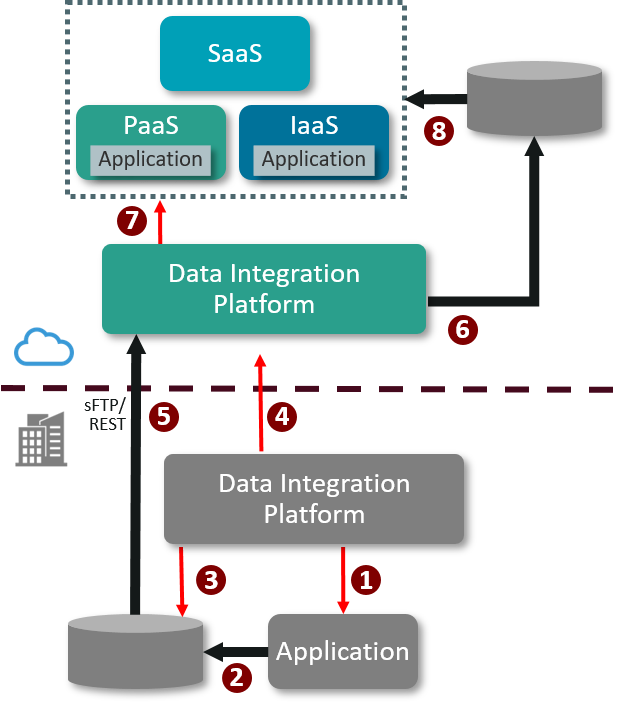

Upload By Reference On Premises to Cloud

Transfer data (via file) from an on-premises application to SaaS or Cloud-based application passing the file by reference.

Interactions

  1. The on-premises Data Integration Platform notifies the on-premises application to export a file. This notification could be time based or business event driven. The notification could also be replaced by a timed export from the Cloud-based application.
  2. The on-premises application exports data to a file.
  3. The on-premises Data Integration Platform creates a handle for the file.
  4. The on-premises Data Integration Platform passes the file handle to the Data Integration Platform
  5. The Data Integration Platform retrieves the file from on premises.
  6. The Data Integration Platform processes the file and writes a file to a Cloud-based storage.
  7. The Data Integration Platform notifies the Cloud-based application that the file is ready for processing. The Cloud-based application could be SaaS, or an application running on PaaS or IaaS. The notification could also be replaced by a timed import or polling from the Cloud-based application.
  8. The Cloud-based application reads the file and processes the contents.

Notes

  1. The on-premises file must be accessible from the Public Cloud.
  2. The on-premises Data Integration Platform must support pass by reference file transfers.
  3. The notifications to the applications are shown as a single call, but there could be multiple API calls to export or import the files.
  4. The on-premises Data Integration Platform tend to support:
    • REST with HTTP Basic or OAuth security, or
    • SOAP with WS Security using username and timestamp

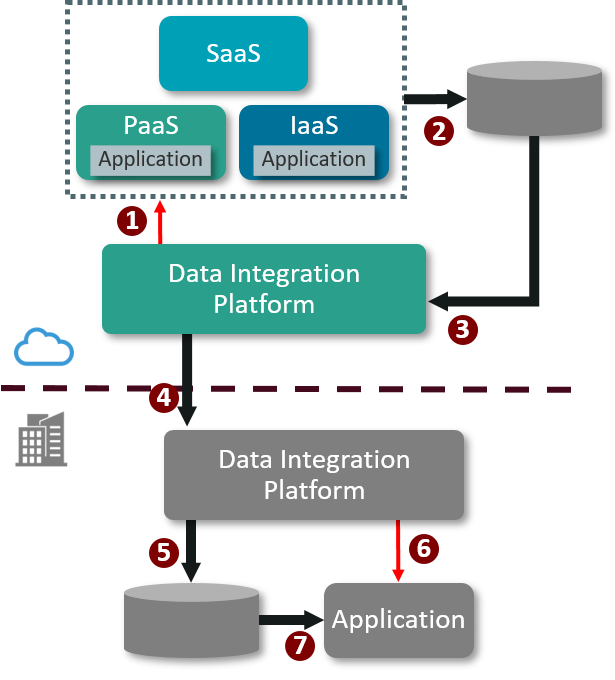

Download Cloud to On Premises

Transfer data (via file) from SaaS or Cloud-based application to an on-premises application.

Interactions

  1. The Data Integration Platform notifies the Cloud-based application to export a file. The Cloud-based application could be SaaS, or an application running on PaaS or IaaS. This notification could be time based or business event driven. The notification could also be replaced by a timed export from the Cloud-based application.
  2. The Cloud-based application exports data to a file.
  3. The Data Integration Platform retrieves the file.
  4. The Data Integration Platform processes the file and sends the file to the on-premises Data Integration Platform.
  5. The on-premises Data Integration Platform processes the file and writes a file to on-premises storage.
  6. The on-premises Data Integration Platform notifies the on-premises application that the file is ready for processing. The notification could also be replaced by a timed import or polling from the Cloud-based application.
  7. The on-premises application reads the file and processes the contents.

Notes

  1. The on-premises Data Integration Platform must be accessible from the Public Cloud.
  2. The notifications to the applications are shown as a single call, but there could be multiple API calls to export or import the files.

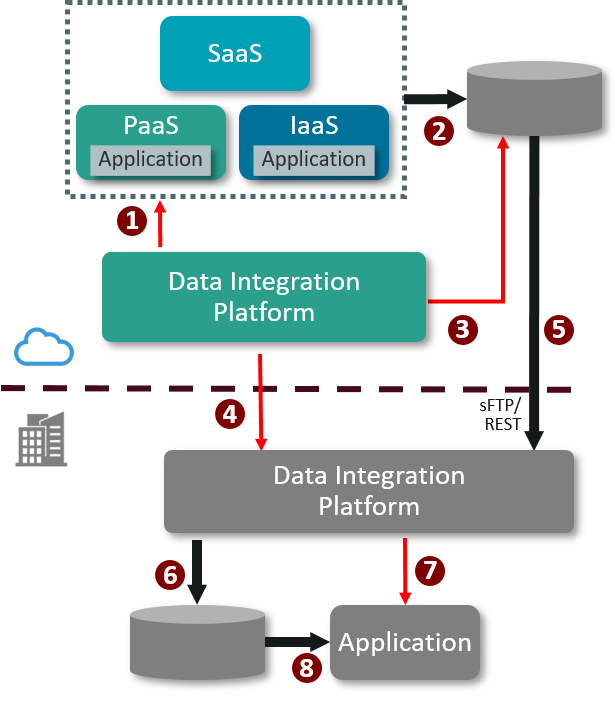

Download by Reference Cloud to On Premises

Transfer data (via file) from SaaS or Cloud-based application to an on-premises application passing the file by reference.

Interactions

  1. The Data Integration Platform notifies the Cloud-based application to export a file. The Cloud-based application could be SaaS, or an application running on PaaS or IaaS. This notification could be time based or business event driven. The notification could also be replaced by a timed export from the Cloud-based application.
  2. The Cloud-based application exports data to a file.
  3. The Data Integration Platform creates a handle for the file.
  4. The Data Integration Platform passes the file handle to the on-premises Data Integration Platform.
  5. The on-premises Data Integration Platform retrieves the file from Cloud-based storage.
  6. The on-premises Data Integration Platform processes the file and writes a file to on-premises storage.
  7. The on-premises Data Integration Platform notifies the on-premises application that the file is ready for processing. The notification could also be replaced by a timed import or polling from the on-premises application.
  8. The on-premises application reads the file and processes the contents.

Notes

  1. The on-premises Data Integration Platform must support pass by reference file transfers.
  2. The on-premises Data Integration Platform must be accessible from the Public Cloud.
  3. The notifications to the applications are shown as a single call, but there could be multiple API calls to export or import the files.
